TITLE 77: PUBLIC HEALTH
CHAPTER I: DEPARTMENT OF PUBLIC HEALTH
SUBCHAPTER r: WATER AND SEWAGE
PART 905 PRIVATE SEWAGE DISPOSAL CODE
SECTION 905.APPENDIX A ILLUSTRATIONS AND EXHIBITS



Section 905.APPENDIX A Illustrations and Exhibits



Section 905.ILLUSTRATION R Waste Stabilization Pond

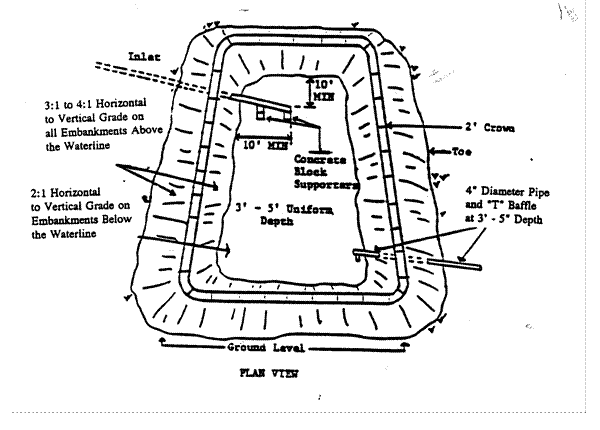

Section 905.EXHIBIT A Plan View





(Source: Amended at 20 Ill. Reg. 2431, effective March 15, 1996)


Section 905.APPENDIX A Illustrations and Exhibits



Section 905.ILLUSTRATION R Waste Stabilization Pond

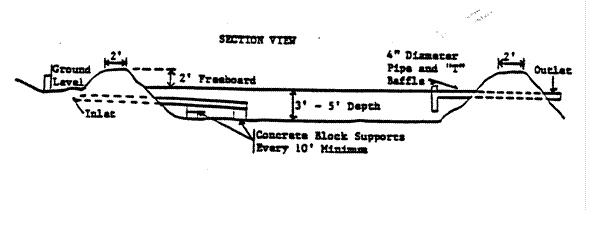

Section 905.EXHIBIT B Section View





(Source: Amended at 20 Ill. Reg. 2431, effective March 15, 1996)


Section 905.APPENDIX A Illustrations and Exhibits



Section 905.ILLUSTRATION R Waste Stabilization Pond



Section 905.EXHIBIT C Waste Stabilization Pond Surface Area in Square Feet







With Septic Tank

With Aeration

Bedrooms

Depth 3 ft.

4ft.

5ft.

3ft.

4ft.

5ft.

1

533 ⅓

400

320

160

120

96

2

1067

800

640

320

240

192

3

1600

1200

960

480

360

288

4

2133

1600

1280

640

480

384

5

2667

2000

1600

800

600

480

6

3200

2400

1920

960

720

576

7

3733

2800

2240

1120

840

672



(Source: Added at 20 Ill. Reg. 2431, effective March 15, 1996)
