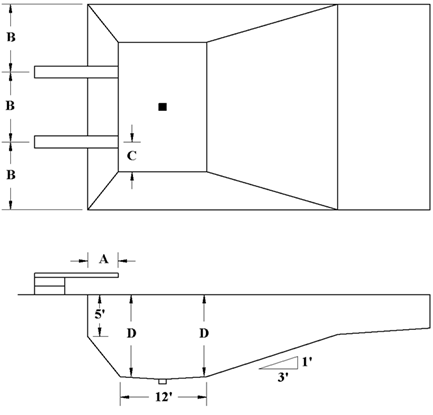

Section 820.ILLUSTRATION C   General Pool Diving Area Dimensions







MINIMUM DISTANCE INDICATED

≤ 0.5 M

1M

3M

A − ENDWALL TO TIP OF BOARD

3'

5'

5'

B − CENTER OF BOARD TO SIDEWALL OR ADJACENT BOARD

10'

10'

12'

C − CENTER OF BOARD LATERALLY TO POINT OF REQUIRED DEPTH

4'

4'

6'

D − DEPTH AT END OF BOARD AND FOR 12' BEYOND

9.5'

10'

12'



*     AS AN ALTERNATE TO THE MINIMUM WALL DEPTH OF 6' BELOW THE WATER LEVEL, THE WALL MAY BE VERTICAL FOR A DEPTH OF 3' BELOW THE WATER LEVEL, BELOW WHICH IT MAY BE CURVED TO THE BOTTOM WITH A RADIUS EQUAL TO THE DIFFERENCE BETWEEN THE DEPTH AT THE BOTTOM AND THE DEPTH AT THE POINT OF CURVATURE.
