TITLE 32: ENERGY
CHAPTER II: ILLINOIS EMERGENCY MANAGEMENT AGENCY
SUBCHAPTER b: RADIATION PROTECTION
PART 351 RADIATION SAFETY REQUIREMENTS FOR WIRELINE SERVICE OPERATIONS AND SUBSURFACE TRACER STUDIES
SECTION 351.APPENDIX B EXAMPLE OF PLAQUE FOR IDENTIFYING WELLS CONTAINING SEALED SOURCES CONTAINING RADIOACTIVE MATERIAL ABANDONED DOWNHOLE

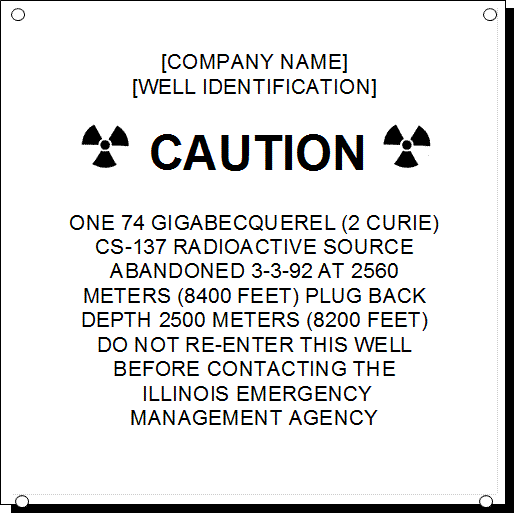

Section 351.APPENDIX B   Example of Plaque for Identifying Wells Containing Sealed Sources Containing Radioactive Material Abandoned Downhole



[COMPANY NAME] [WELL IDENTIFICATION] CAUTION ONE 74 GIGABECQUEREL (2 CURIE) CS-137 RADIOACTIVE SOURCE ABANDONED 3-3-92 AT 2560 METERS (8400 FEET) PLUG BACK DEPTH 2500 METERS (8200 FEET) DO NOT RE-ENTER THIS WELL BEFORE CONTACTING THE ILLINOIS EMERGENCY MANAGEMENT AGENCY



























































The size of the plaque should be convenient for use on active or inactive wells, e.g., a 17-centimeter (7-inch) square and 3 mm (⅛ inch) thick.  Letter size of the word "CAUTION" should be approximately twice the letter size of the rest of the information, e.g., 12-millimeter (½-inch) and 6-millimeter (¼-inch) letter size, respectively.  Quantities and distances may be expressed either in SI units or in special and English units or in dual units.
